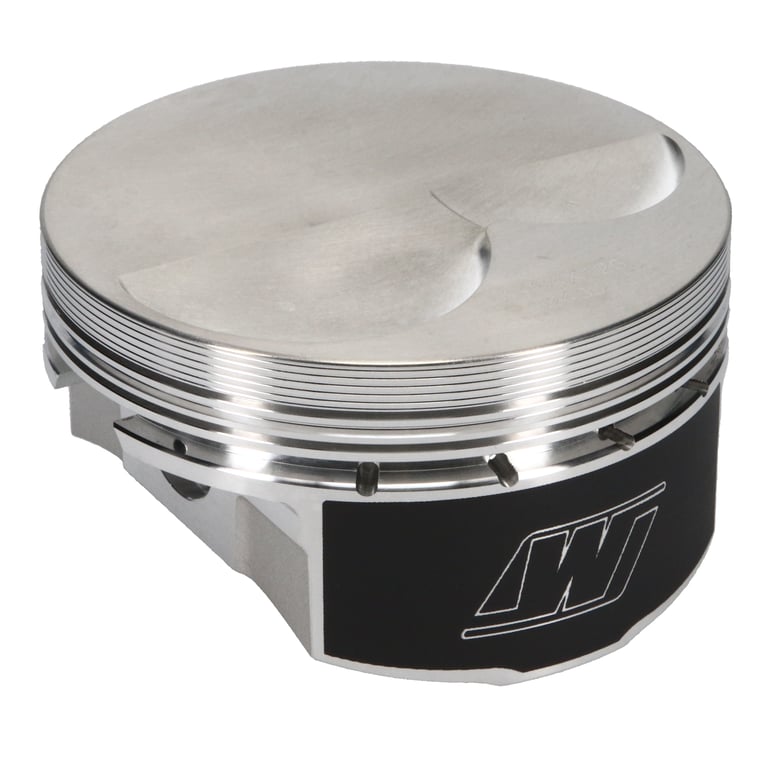

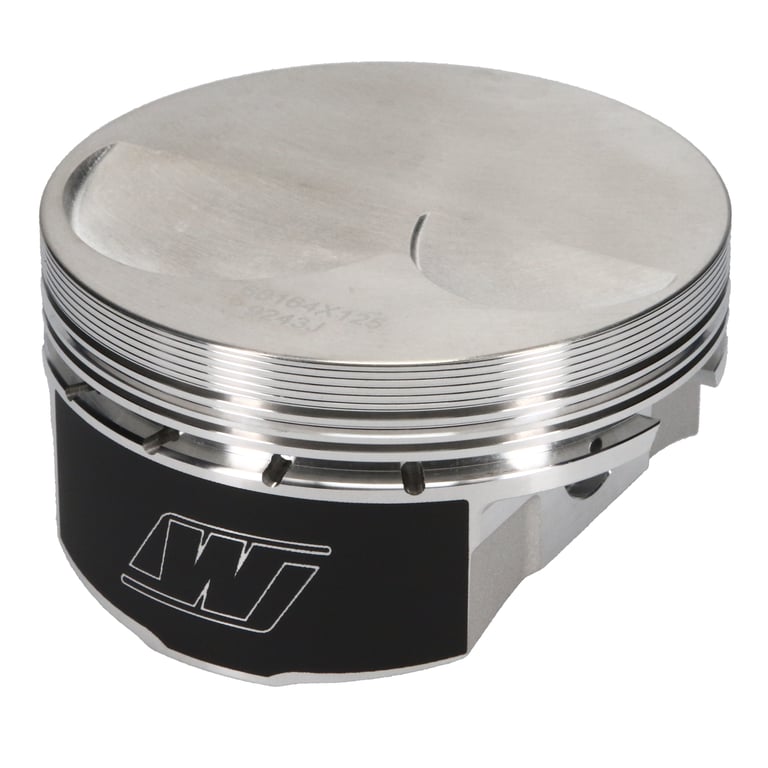

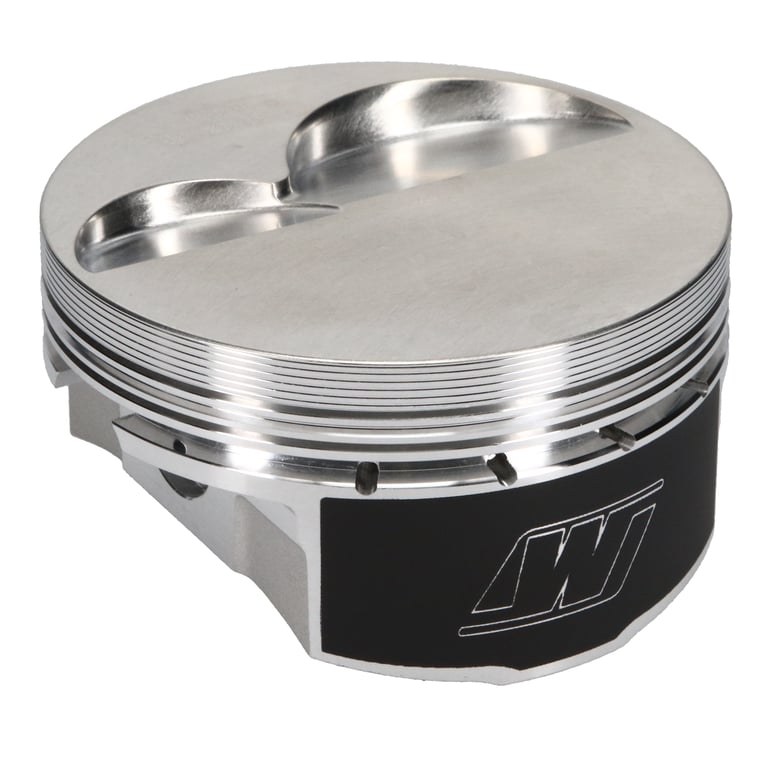

Professional Ford Small Block 302 Piston – 4.125 in. Bore – 1.165 .in CH, -9.00 CC


Your Price: $128.09

SKU: 60171X125

Estimated Shipped Date 3-4 Weeks

Wiseco Ford Small Block 302 Piston, 4.125 in. Bore, 1.165 in. Compression Height, 0.927 in. Pin Diameter, Professional, Set of 1.

Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco’s Professional Series.

  • Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
  • ArmorGlide® Skirt Coating: seizure resistant, friction reduction, and quieter operation
  • Fully machined crown features
  • Precision ring grooves, anti-detonation groove, and additional ring seal improving features
  • Forced pin oiling
  • Designed and built to withstand heavy to severe duty performance applications

GTIN: 00193564079367

Product Series

Professional

Bore Diameter

4.125 IN

Compression Height

1.165 IN

Piston Volume

-9.00 CC

Piston Material

2618

Skirt Coating

Yes

Forging Type

Slab Side

Piston Quantity

1

Ring Set Included

Yes

Top Compression Ring Thickness

0.047 IN

Second Compression Ring Thickness

0.047 IN

Oil Ring Thickness

3.0 MM

Wrist Pin Included

Yes

Wrist Pin Material

5115

Wrist Pin Outer Diameter

0.927 IN

Makes

Ford

Engines

Small Block
Instructions: Enter a value in the un-shaded boxes below as they pertain to your engine.
Note: For pistons BELOW the block @ TDC – value in box must be a POSITIVE number (.000)
Note: For pistons ABOVE the block @ TDC – value in box must be a NEGATIVE number (-.000)
Note: For a DISH piston – value in box must be a POSITIVE number (0.0)
Note: For a DOME piston – value in box must be a NEGATIVE number (-0.0)
Note: Manipulate the DOME/DISH & PISTON to DECK volumes to get the ratio you want.
Enter the number of cylinders of your engine
Bore
Finished bore of your engine
Stroke
Stroke of your engines crankshaft
Rod Length
Ctr. to Ctr. length of your connecting rods
Gasket Bore
Head Gasket bore diameter
Comp. Gasket
Compressed Head Gasket thickness
Block Deck Height
Center of main bearing bore to top of block
Top Ring Down
Top of 1st ring to top of pistons(FLAT)
Chamber Volume
Cylinder Head chamber volume in CC’s
Dome/Dish Volume
DOME (-) or DISH (+) vol. (theoretical) in CC’s
Piston to Deck
Top of BLOCK to top of piston (FLAT) @ TDC
Click “Calculate” for dimension results.
Total Volume

Cylinder Volume
Total cylinder volume in CC’s =
Clearance Volume
All effective vol. above block deck @ TDC in CC’s =
Gasket Volume
Volume of your head gasket in CC’s =
Top Ring Volume
Total volume above the top ring @ TDC in CC’s =
Deck Volume
Volume of area above the pistons @ TDC in CC’s =
Piston Top Land
Piston top land diameter for volume calculations =
1/2 Stroke
1/2 stroke of your engine’s crankshaft in inches =
Compression Ht.
Ctr. of piston pin to top of piston (FLAT) in inches =
Cubic Inches
Cubic inch displacement of your engine =
For the given dimensions, your compression ratio
