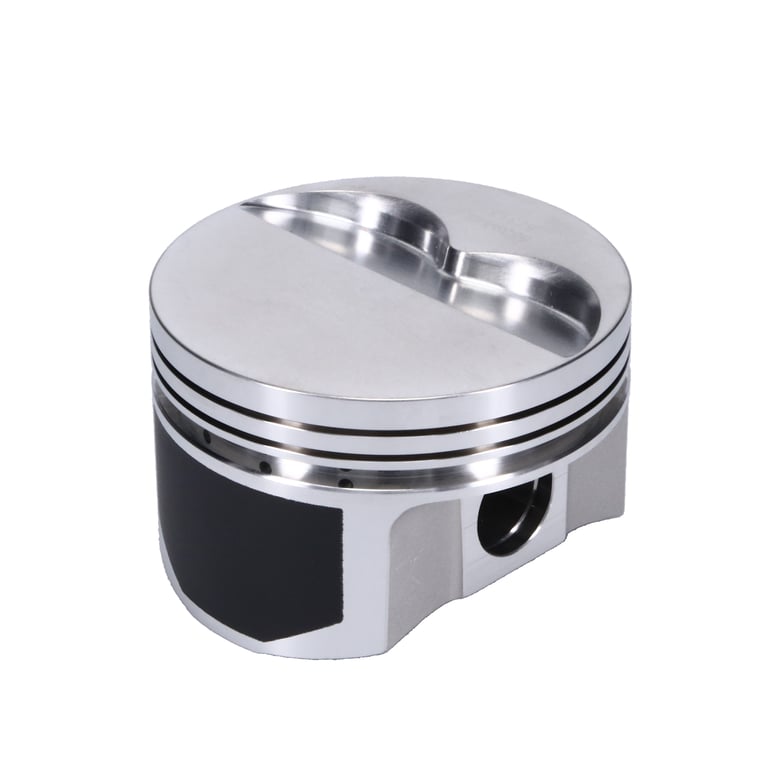

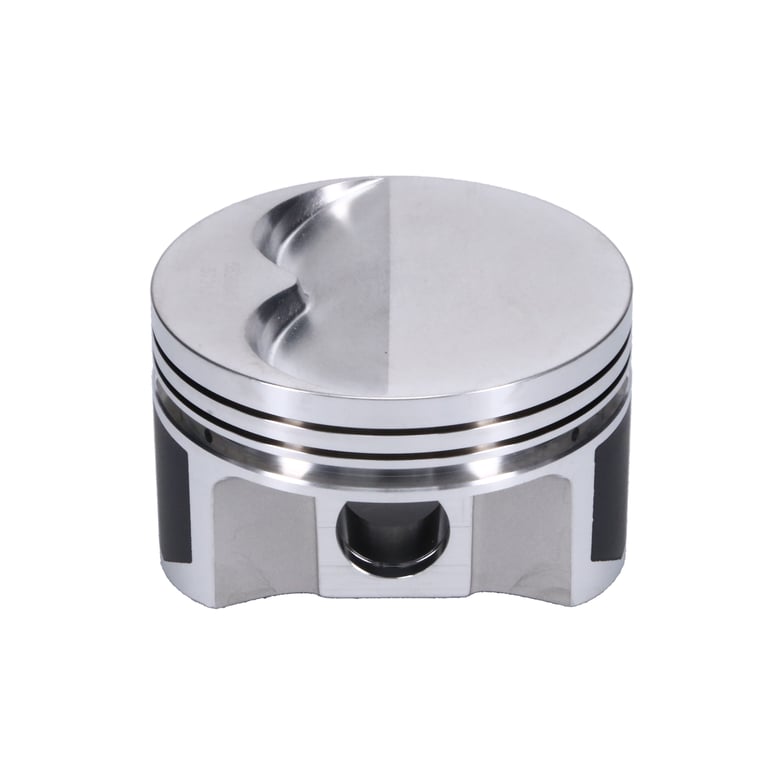

Pro Tru Street AMC 360 Piston – 4.125 in. Bore – 1.590 .in CH, -8.60 CC
Your Price: $100.79
SKU: 5539A45
In Stock
–
Wiseco AMC 360 Piston, 4.125 in. Bore, 1.590 in. Compression Height, 0.945 in. Pin Diameter, Pro Tru Street, Set of 1.
Our Pro Tru™ Street series pistons are forged from 4032 alloy aluminum in Mentor, Ohio and includes rings, pins, and clips for an all-inclusive rebuild. For any build budget, Wiseco has the piston to get you on the road or down the track.
- ArmorGlide® Skirt Coating: Seizure resistant, Friction Reduction, and Quieter Operation
- 4032 Forged Aluminum
- AS-Forged Dome with Crown Features & Oil Drain Backs
- Chromium Alloy Steel Piston Pin & Spirolox® Included
GTIN: 00193564095176
| Product Series | Pro Tru Street |
|---|---|
| Bore Diameter | 4.125 IN |
| Compression Height | 1.590 IN |
| Piston Volume | -8.60 CC |
| Piston Material | 4032 |
| Skirt Coating | Yes |
| Forging Type | Slab Side |
| Piston Quantity | 1 |
| Ring Set Included | Yes |
| Ring Set Part Number | S100S1-4125-5 |
| Ring Quantity | 1 |
| Top Compression Ring Thickness | 1/16 IN |
| Second Compression Ring Thickness | 1/16 IN |
| Oil Ring Thickness | 3/16 IN |
| Wrist Pin Material | 5115 |
| Wrist Pin Style | Floating |
| Wrist Pin Outer Diameter | 0.945 IN |
Makes
AMC
Engines
360
Instructions: Enter a value in the un-shaded boxes below as they pertain to your engine.
Note: For pistons BELOW the block @ TDC – value in box must be a POSITIVE number (.000)
Note: For pistons ABOVE the block @ TDC – value in box must be a NEGATIVE number (-.000)
Note: For a DISH piston – value in box must be a POSITIVE number (0.0)
Note: For a DOME piston – value in box must be a NEGATIVE number (-0.0)
Note: Manipulate the DOME/DISH & PISTON to DECK volumes to get the ratio you want.
